Product Description

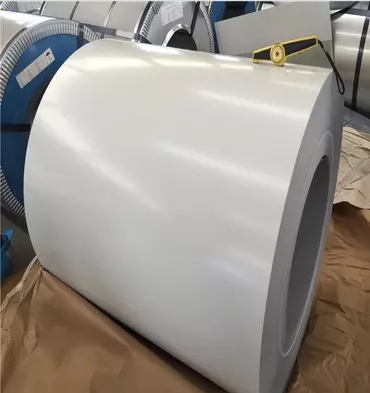

PPGI is also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet substrate. PPGL is also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.
Specification:
| Product name | Prepainted Galvanized Steel Coil |
| Material | DX51D |
| Zinc | 20-120g |
| Thickness | 0.13-0.8 mm |
| Width | 600-1250 mm |
| Color | all RAL color , as client’s request |
| Paint | top paint : 10-30mic back paint: 5-25 mic |
| Paints | PE, SMP, HDP, PVDF |
| T bend | < 3T |
| Pencil hardness | >2H |
| Coil ID | 508/610mm |
| Coil weight | 3-8tons |
| Surface | glossy and matt |
| Glossy | 30%-90% |
| Package | standard export package (Detailed picture is as follows) |
| Hardness | soft (normal), hard, full hard(G300-G550) |
| HS code | 721070 |
| Country of origin | China |
Common RAL Colors:
You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:
PPGI Sheet Coating Layer:
|  |
PPGL Coil Profile:
|  |
PPGI Steel Sheet Applications:
Color coated steel coil/sheet (PPGI & PPGL) is widely used in:
Building
Roofing
Transport
Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
Solar Energy
Furniture
PPGI Production Line:
PPGI Coil Production Process:
Unrolling – Stitching machine – Entrance loop – Pretreatment – Initial coating – Bake – Cool down – Fine coating – Bake – Embossed film – Export loop – Inspection station – Cut – Coiling
In the above process, if the cleaning degreasing process is not handled well, the adhesion of the primer of the color coated plate to the galvanized sheet is not good, and it is easy to cause the topcoat of the color coated steel coil to fall off during the press forming process.
